Overview

The Mini by Sacred Labs is an 18-pin board that connects to the GPIO on top of the Flipper Zero device. This compact board features an ESP32-WROOM-32UE chip with Marauder firmware pre-loaded, focusing on essential WiFi capabilities in a lightweight, portable package.

Key Features

  • ESP32-WROOM-32UE: Marauder firmware pre-loaded
  • USB-C Port: Easy firmware updates
  • Micro SD Slot: Expandable storage for Marauder
  • 18-pin GPIO: Secure, flat connection
  • Compact Design: Lightweight and portable
  • WiFi Focus: Specialized for wireless testing

Important Requirements

You will need unofficial firmware on your Flipper Zero. We use and test devices using Momentum firmware, but you may choose another one that supports the required applications.

View Firmware Guide

Board Components

For a comprehensive guide covering all components and their functionality, visit our detailed components guide:

Component Guide

ESP32 with Marauder

Chip: ESP-WROOM-32UE

Primary Use: WiFi security testing and Bluetooth scanning

What is Marauder?

ESP32 Marauder by justcallmekoko is a comprehensive WiFi and Bluetooth testing suite that comes pre-loaded on FlipMods boards. It provides capabilities for:

  • WiFi network scanning and analysis
  • Deauthentication attacks on WiFi networks
  • Bluetooth device scanning
  • And many more which you could find in the wiki

How to Access Marauder

Navigate to: Apps > GPIO > ESP > [ESP32] WiFi Marauder

To learn more about how Marauder works and explore advanced features, visit the official documentation:

Marauder Wiki

Updating Marauder Firmware

Keep your ESP32 Marauder firmware up to date for the latest features and security improvements.

View Update Guide

Hardware Controls

USB-C Port: Used for uploading firmware to the ESP32 chip.

R/Reset Button: Resets the ESP32 chip. Use if the ESP32 becomes unresponsive or after firmware updates.

B/Boot Button: Puts ESP32 into boot/flash mode. Hold while connecting USB for firmware updates or troubleshooting.

2.4GHz Frequency Limitation

The ESP32-WROOM-32UE chip and antennas operate on 2.4GHz, so testing will work on 2.4GHz networks. Deauth attacks will not work on every network due to 5GHz frequency limitations or enhanced security protections.

Antennas

The Mini board requires a specific antenna for optimal WiFi performance. Look for the frequency label (2.4GHz) printed next to the antenna connector on the board.

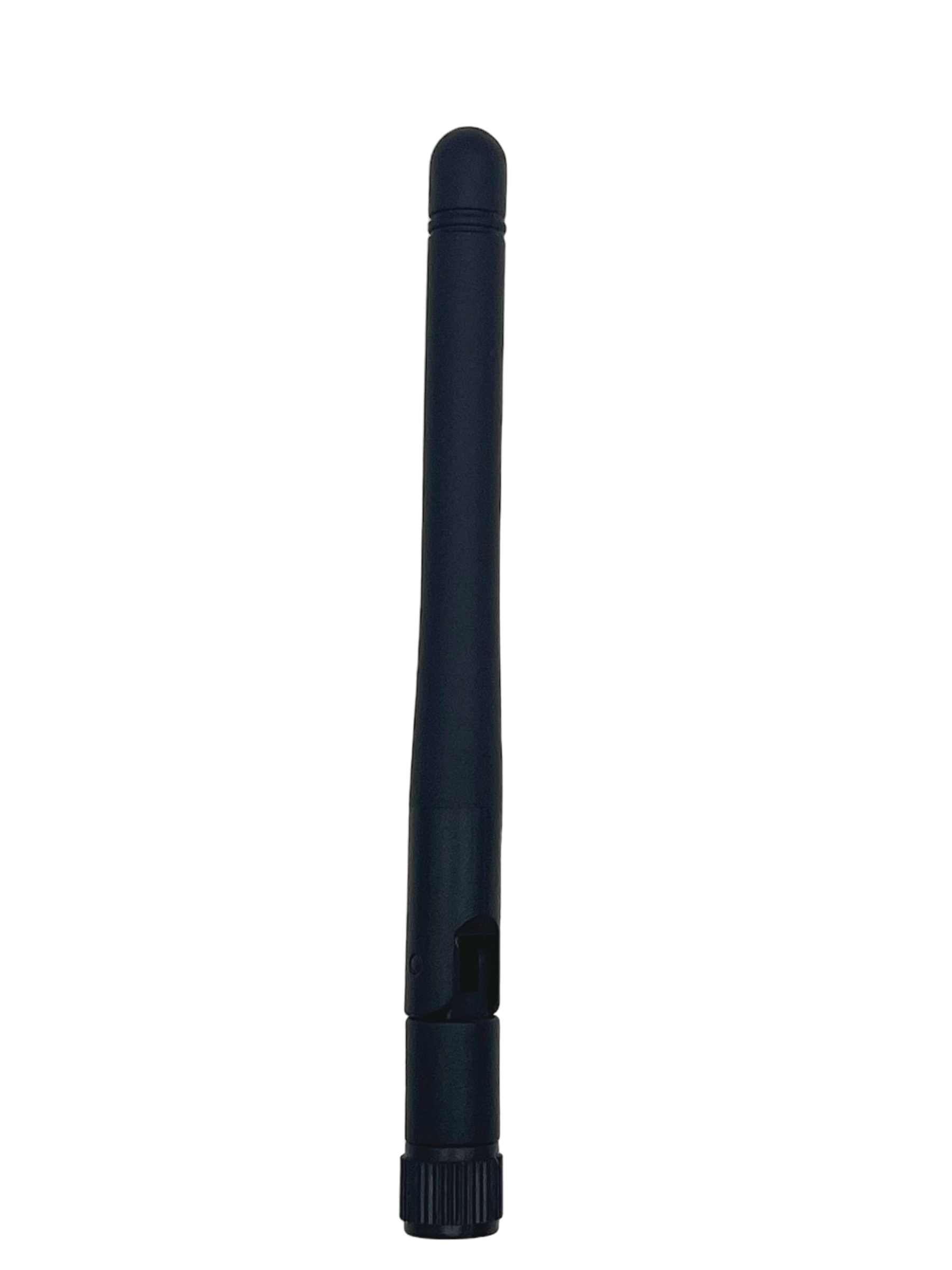

2.4GHz Antenna (1 Required)

2.4GHz Antenna

Used for: ESP32

Hardware Controls

Power Switch

Simple on/off switch to control the Mini board power.

Setup Instructions

1

Install Unofficial Firmware

Flash your Flipper Zero with Momentum firmware for full compatibility.

View Guide
2

Prepare SD Card (Optional)

Use an SD card ≤32GB, initialized as FAT32. Some brands may not work with Marauder - ensure SD card is inserted before turning the board on.

3

Set Switch Position

Set the Mini board switch to "On" before powering on the Flipper Zero.

4

Connect Board Safely

Ensure the Flipper Zero is off when plugging the Mini board in.

Video Tutorial

Legal Notice

Always ensure you are following the laws and regulations of your area when using all components. Only test on networks and devices you own or have explicit permission to test. The user is fully responsible for complying with all applicable laws and regulations.
